ACQ1158Cu
En stock.
1,61 €
Impuestos incluidos
Cable coaxial RG58CU 50 ohm Mil-C-17 Q11-58CU (Precio por metro)

A partir de Precio por unidad
100 unidades 1.50 € - 15% 1.28 €

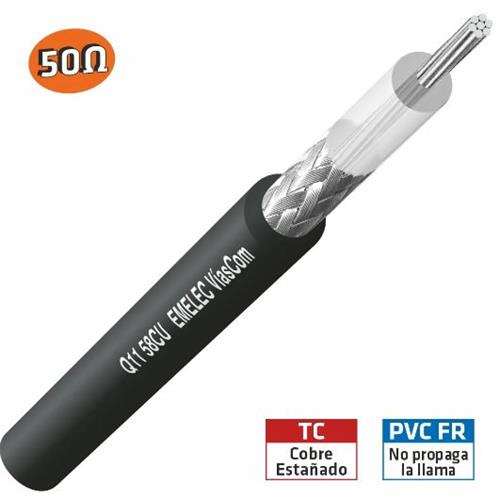

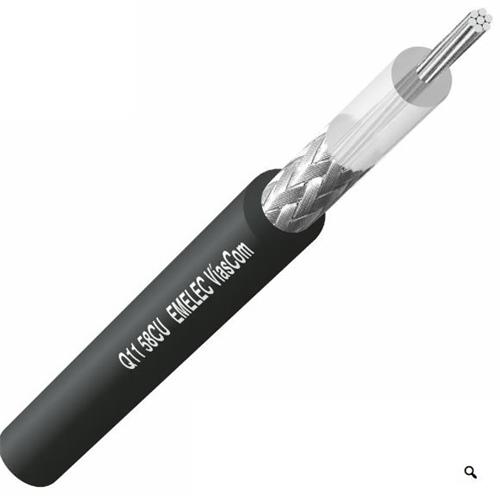

Serie Q11-58CU Cable Coaxial RG 58CU 50O

Descripción del producto
0,90 mm TC + 2,95 mm PE.
Pantalla Trenza TC 95% cobertura.
Ø Exterior: 5,00 mm.

Presentación

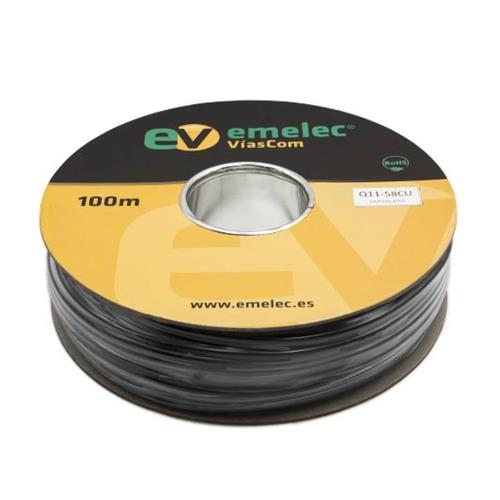

Bobina de 100 mts.
Bobina de 250 mts.
Bobina de 500 mts.

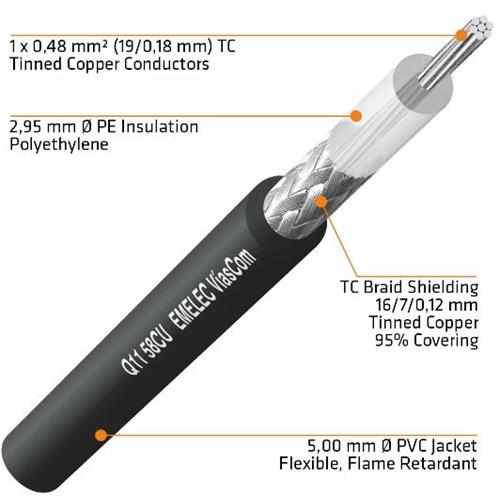

Características
Conductor: Cobre Estañado Flexible 19/0,18 mm
Dieléctrico: PE Sólido 2,95 mm
Pantalla: Trenza Cobre estañado Cobertura 95%
Funda: PVC retardante de llama
Color funda: Negro o Transparente o Gris o Blanco

Características físicas
Temperatura de servicio: -40 °C / +85°C
Características eléctricas
Tensión máxima CA: 49 V.
Impedancia: 50±0 O
Capacidad: 101±0 pF/m
Velocidad de Propagación: 66,0 %
Conductor DCR:< 35,0O/Km
Outer Shield DCR: 13,5 O/Km
Max Operating Frequency: 1.000,0 MHz
Max Operating Voltage: 1.900,0 RMS
